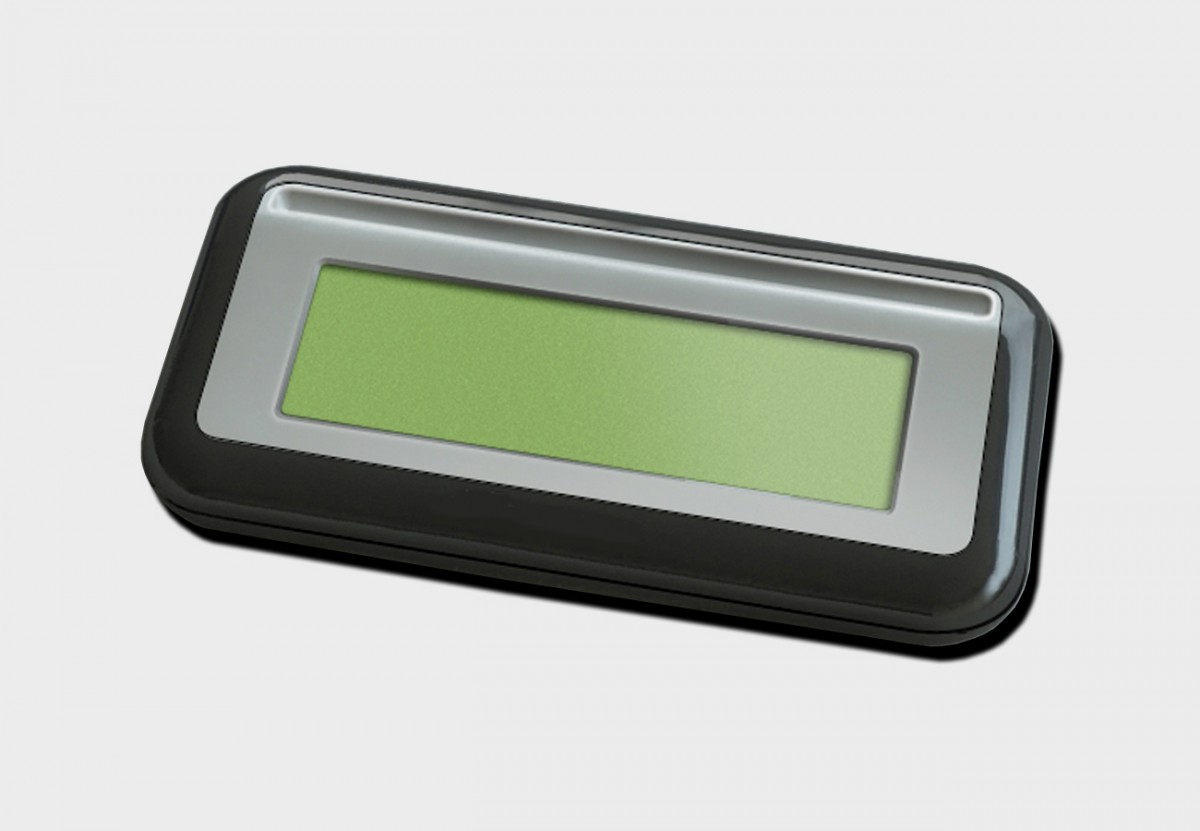

*특징
(1) PinPad 기능 제공
(2) 다양하게 활용 할 수 있는 SDK제공 (Web Application도 함께 제공)
(3) 240X64 LCD장착으로 다양한 화면 구성
| 항목 |
세부사항 |
| CPU |
ARM Cortex-M3 32-BIT128 8-bit |
| Memory |
SRAM 64KB |
| Dimension |
170mm(W) × 88mm(D) × 21.5(H)mm |
| Weight |
260g (0.5731b) |
| LCD Mode |
STN/Positive Reflection Mode (Yellow-Green) |
| LCD Resolution |
240(H) x 64(V) Dots |
| Viewing Direction |
6 o'clock |
| LCD Window Size |
71mm x 39mm |
| Pen Type |
Tethered Urethane Spring-Loaded Stylus |
| Touch Panel Type |
ITO 4-Wire Resistive Touch Pad |
| Touch Panel Size |
115mm × 46mm |
| Interface |
USB |
| Baud rate |
2,400 ~ 57,600 |
| Power |
+5.0V DC 100mA |
| Power Port |
Self-Powered from USB port or use External Power |
| Operating Temp. |
0 ~ 5°C |
| Storage Temp. |
-10 ~ 60°C |
| Certification No. |
KECIT e-Pad 1100 |
